Access Floor Systems

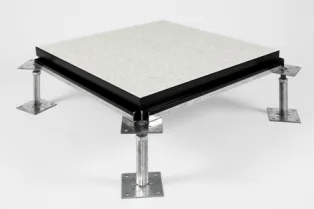

Tascom™ CF-CL Bare Panel System

The 600mm x 600mm panel is manufactured using a steel/cementitious construction. A hard precision sized steel outer shell is filled with a concrete composite core to provide strength, acoustic rating and fire resistance.





This access floor system combines lockable panels within a stringerless, cornerlocked understructure. The panel and understructure unite to provide a rigid access floor membrane that provides easy underfloor access and a very stable surface. The finished access floor has a ‘bare’ panel surface finish ready to accept on-site floor covering supplied by others.

Product Specification PDF Downloads

Tascom™ CF-CL SES Bare Panel System

This access floor system combines lockable panels within a structural encapsulated stringered (SES) understructure. The panel and stringered understructure unite to provide a rigid, air-tight access floor membrane that provides easy underfloor access and a very stable surface. The finished access floor has a ‘bare’ panel surface finish ready to accept on-site floor covering supplied by others.

Key Performance Characteristics

  • All whole panels are completely interchangeable.
  • Zinc whisker free.
  • Interchangeable panel strengths.
  • Safety factor of three times the concentrated (design) load.

Product Specification PDF Downloads

Tascom™ CF-SCX Laminate Panel System

The 600mm x 600mm panel is manufactured using a steel/cementitious construction. A heavy-duty precision-sized steel outer shell is filled with a concrete composite core to provide strength, acoustic rating and fire resistance. To provide an anti-static surface, a layer of hard wearing high pressure laminate is bonded to the top surface. The resulting heavy grade panel is a structural element that achieves maximum strength and durability for the widest range of anti-static applications.

This access floor system combines panels in a gravity held format within a stringered understructure. The panel and understructure unite to provide excellent lateral stability and rigidity along with easy underfloor access, making this system suitable for the majority of Computer Room / Equipment Room environments. The finished access floor has an anti-static High Pressure Laminate surface finish ready for installation and immediate use.

Product Specification PDF Downloads

Retro-Fit Applications

JEL Access Floors offers a selection of Access Floor Systems which are suitable for retro-fit applications including Tascor, Woodcore, Fibrecore and Aluminum Access Floor System.

Please contact us to speak with an experienced member of our team who will be able to help you with your project.

Tate Panel Lifter

Tate's double cup suction panel lifter(s) allows panels to be lifted, quickly and safely without damaging any of the adjoining access floor panels.

Characteristics

  • Allows panels to be lifted easily without damaging adjoining panels.
  • Excellent safety factor.
  • Suitable for use with 'Bare' and 'HPL' surface panels.
  • Simple to use.

Product Specification PDF Download

Data Centre Products - Airflow Panels

JEL Access Floors offers a complete range of Tate Airflow Panels. Tate Airflow has a full line of directional and standard airflow panels to cater to all your data center cooling needs. Our range of cost-effective and energy-efficient airflow panels offer compelling returns on investment and lower operating costs in both new build and retrofit applications.

Airflow Brochure PDF Download

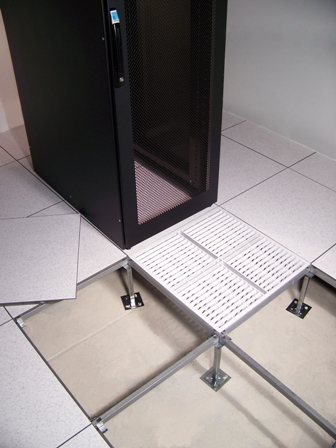

DirectAire®

Directional Airflow for Optimum Cooling

DirectAire® angles the airflow toward the server rack which significantly reduces bypass air. Unlike typical grates which only deliver 30-50% of air directly to the rack, DirectAire has a 93% Total Air Capture(TAC) rate. This means that 93% of the air is captured by the server rack, enabling improved energy performance.

With a strong all steel construction, DirectAire enables a data centre to enjoy operational savings as the number of CRAH units can be reduced due to the precise delivery of air. As bypass air has virtually been eliminated, the facilities overall cooling capacity can be improved, allowing for the addition of IT equipment with the capital investments on infrastructure.

Key Performance Characteristics

  • Directional air flow achieves a 93% total air capture.
  • Pressure equalizing diffusion blades.
  • Cools over 25kW per rack.
  • 68% open area delivers 1227 L/s @ 25 Pa.
  • Reduces capital expenditures on cooling infrastructure by 40%.
  • Over 40% annual fan energy savings.
  • 7.5kN Design Load.

Product Specification PDF/Word Downloads

DirectAire® Al

The DirectAire Al is an all aluminum lightweight directional airflow panel that uses patent pending technology to angle the air toward the equipment achieving a 93% Capture Index. This means that 93% of the airflow delivered through the airflow panel is entering the face of the server rack, providing the highest cooling capacity and energy efficiency of any aluminum airflow panel on the market.

Directional airflow panels maximize the financial performance of any new or existing data center. The precise delivery of air reduces bypass airflow allowing new facilities to reduce the number of CRAH units.

Airflow Performance Information

Pressure (in. H2O) CFM (w/o Damper) kW/Rack (93% CI)
0.02 1123 8.3
0.04 1572 11.6
0.05 1751 12.9
0.06 1913 14.1
0.08 2200 16.2
0.10 2451 18.1
0.12 2678 19.8
0.14 2886 21.3
0.16 3079 22.7
0.18 3260 24.1
0.20 3430 25.3

*Cooling capacities were calculated using the following formula:(CFM x Capture Index %) / 126(CFM needed to cool 1kW @ 25ºF ΔT)= kW per rack.

Retrofits can set CRAH units with fixed speed fans to standby mode or adjust variable fan drives to operate at a lower static pressure, saving energy. Likewise the 93% Capture Index eliminates the need for a full containment system. The facilities overall cooling capacity will also be improved allowing for the addition of IT equipment without capital investments on infrastructure.

Key Performance Characteristics

  • Lightweight cast aluminum grate design.
  • 60% Open Area delivers 2,451 CFM at 0.10" H2O.
  • Cools over 18kW per rack at 0.10" H2O.
  • 1,500 lb. Design load performance.
  • Directional Airflow for 93% Capture Index.
  • Manual and automatic airflow control options.

Product Specification PDF/Word Downloads

DirectAire® X2

Airflow Performance Information

Pascals L/s kW/Rack (93% TAC)
5 543.27 4.2
10 767.47 6.0
12.5 870.37 6.8
15 947.30 7.4
20 1094.09 8.6
25 1224.37 9.6
30 1332.45 10.4
35 1428.74 11.2
40 1518.42 11.9
45 1594.41 12.5
50 1620.36 12.7

*Cooling capacities were calculated using the following formula:(L/s x Total Air Capture %) / 126(L/s needed to cool 1kW @ -3.89ºC )= kW per rack.

Key Performance Characteristics

  • Allows for directional airflow delivery to two racks when the existing cold aisle can only accommodate one airflow panel.
  • Capable of cooling 10kW per rack @ 25 Pa due to evenly split nature of directional airflow paths.

High Density Cooling Capacity

DirectAire® X2's capacity to distribute high volumes of air directly and equally across the face of the server rack gives it the distinctive ability to handle very high density equipment. The table below lists cooling capacities per rack based on a mathematical calculation for systems without containment. Laboratory testing was conducted using load banks to measure the cooling effectiveness and verify the calculated kW/ rack heat loads.

Product Specification PDF/Word Downloads

Perforated Airflow Panel

The Tate perforated access floor panel delivers and controls the flow of cool underfloor air conditioning into computer/equipment room environments that are typically producing high amounts of heat. Airflow to the IT equipment can be easily adjusted with the installation of an opposed blade damper. By accurately controlling the amount of airflow delivered to meet the cooling needs of the equipment, energy savings can be realised.

Characteristics

  • Panel is available with top surface adjustable damper.
  • Steel perforated panels are available with High Pressure Laminate.
  • Easy to install and relocate.
  • Suited to areas of medium loading and normal foot traffic.

Product Specification PDF Download

Opposed Blade Damper

Balanced Airflow for Diverse Loads

Offering significant airflow improvement over traditional manual slide dampers, Tate's Opposed Blade Dampers are easy to install and when fully open, restricts airflow through the panel by only 10%.

The Opposed Blade Damper is offered in 3 versions: Single-zone, Multi-zone and Dual-zone for use with the airflow panels in Tate's portfolio.

Features & Benefits

  • Reduces cooling energy usage and improves PUE.
  • Provides the most granular airflow control available in Data Centres
  • Provides nearly double the airflow at 100% open than comparable slide dampers.
  • Easily adjustable from above without panel removal when used with DirectAire.
  • For use with full or partial loaded racks.
  • Multi-zone dampers are for use with DirectAire only.

Product Specification PDF/Word Downloads

Data Centre Products - KoldLok

JEL Access Floors offer the complete range of Tate KOLDLOK air sealing grommets to provide complete control bypass airflow in your data centre. The Tate KOLDLOK air sealing grommets are designed to prevent air leakage from the underfloor plenum where penetrations in a raised floor are needed to deliver power, data and other services to equipment above the floor.

Tate KoldLok Brochure PDF Download

Original Tate KoldLok Air Sealing Grommet

Improving Data Centre Efficiency

Tate has partnered with Upsite Technologies to bring to market the most advanced wire and cable air sealing grommet available. The Tate KoldLok air sealing grommet is designed to stop air leaking from the raised floor plenum where penetrations are necessary to deliver cables and other services to equipment above the floor.

Tate KoldLok is a 200mm x 280mm injection moulded ABS plastic grommet designed to mount in a raised floor panel. Supplied with an optional rigid lid capable of supporting up to 115kg this grommet is designed to be installed at the same time as the raised floor. The interior crenelated design provides a superior seal over other brush style grommets improving air sealing performance and saving energy.

Benefits of Tate KoldLok

  • Easy to install and relocate.
  • Interior crenelated design provides a superior seal over other brush style grommets.
  • Saves time and eliminates mess.
  • Improves capacity, efficiency and performance.
  • Improves air leakage performance and saves energy.

Tate KoldLok Extended Air Sealing Grommet

Applications

Designed to seal a variety of existing larger openings, with the added flexibility of modification for unique openings.

Features

  • The Grommets can be modified to seal unique cable openings.
  • The Grommets integrate with the raised-floor static dissipation system.
  • Compliant with the directive that restricts the use of certain hazardous substances in electrical and electronic equipment (RoHS).

Product Specification PDF Download

Tate KoldLok Integral Air Sealing Grommet

Applications

Airflow management device designed to seal cable openings in new raised-floor systems prior to the installation of communication or power cabling.

Features

  • The Split Integral Grommets allow tiles to be moved without capturing cables.
  • The Grommets integrate with the raised-floor static dissipation system.
  • The Grommets contain no loose or partially fastened parts, which can become separated or fall through the raised floor.
  • Compliant with the directive that restricts the use of certain hazardous substances in electrical and electronic equipment.

Product Specification PDF Download

Tate KoldLok Surface Mount Air Sealing Grommet

Applications

Designed to seal a variety of existing raised-floor tile cutouts and allow the flexibility of removing tiles without capturing cables.

Features

  • The Surface Mount Grommet facilitates re-cabling and allows tiles to be moved without capturing cables.
  • The Grommets integrate with the raised-floor static dissipation system, providing 1 Giga-Ohm of resistance.
  • The Grommets contain no loose or partially fastened parts, which can become separated or fall through the raised floor.
  • Compliant with the directive that restricts the use of certain hazardous substances in electrical and electronic equipment (RoHS).

Product Specification PDF Download

Tate KoldLok Mini Air Sealing Grommet

Applications

Designed to seal small cable openings in the raised floor of new or existing computer rooms.

Features

  • Smaller size offers flexibility for data centers that have multiple cable opening sizes.
  • Meets smaller cable opening standards specified in new data center builds.
  • Cost-effective method of separating data cabling from power cabling.
  • Impact-resistant and durable.
  • Contains no loose or partially fastened parts that can become separated or fall through the raised floor.
  • Compliant with the directive that restricts the use of certain hazardous substances in electrical and electronic equipment.

Product Specification PDF Download

Tate KoldLok 102mm Round Air Sealing Grommet

Applications

Designed to seal openings in new and existing raised floor cutouts to block bypass airflow and maximize cooling system efficiency.

Features

  • The Split feature of the KoldLok Round 102mm allows product installation or removal without disturbing cables.
  • The Grommets contain no loose or partially fastened parts, which can become separated or fall through the raised floor.
  • The Grommets are impact resistant and durable.
  • HBT Membrane Layer,
  • Tapered joining structure.

Product Specification PDF Download
